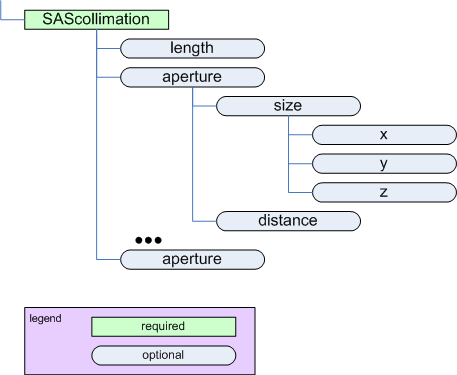

The SAScollimation element

Name Type Occurrence Description Attributes
length float [0..1] Amount/length of collimation inserted (on a SANS instrument) unit={unit} [1]
aperture container [0..inf] Description of a slit or aperture. name: Optional name attribute for this aperture. type: Optional text attribute to describe the type of aperture (pinhole, 4-blade slit, Soller slit, ...).

name={name}

type={type}

aperture

Name Type Occurrence Description Attributes
size container [0..1] Opening dimensions of this aperture. name={name}
distance float [0..1] Distance from this collimation element to the sample. unit={unit} [1]

size

See the figures in Definition of the coordinate axes.

Name Type Occurrence Description Attributes
\(x\) float [0..1] Dimension of the collimation in X. unit={unit} [1]
\(y\) float [0..1] Dimension of the collimation in Y. unit={unit} [1]
\(z\) float [0..1] Dimension of the collimation in Z. unit={unit} [1] [2]

Table Notes

[1](1, 2, 3, 4, 5) The unit attribute is required. See Rules for acceptable values.
[2]While \(z\) is allowed by the standard (provided by use of a standard size element in the XML Schema), it does not make sense to use it for small-angle scattering. Use of \(z\) here may be ignored by processing software.
